AutoScan-K Automated 3D Scanning System
Contact for quote
A robot-mounted automated 3D scanning cell built around SCANTECH's composite KSCAN scanning head — non-contact, machine-vision-based batch inspection running continuously.
Technical Specifications
| Models | AutoScan-K20 / AutoScan-KM / AutoScan-KM II |
|---|---|
| Automation Type | Robot-mounted, machine-vision guided |
| Laser Lines (Total) | 20 (K20) / 41 (KM) / 45 (KM II) |
| Max Scan Rate | 650,000 (K20) / 1,350,000 (KM) / 1,650,000 (KM II) meas/sec |
| Max Scan Area | 550 × 600mm (K20) / up to 3760 × 3150mm (KM/KM II, wide-area) |
| Resolution | down to 0.010mm |
| Volumetric Accuracy | from 0.015mm + 0.012mm/m (with MSCAN-L15) |
| Laser Safety Class | Class II (eye-safe) |
| Suggested Part Size | Up to ~100kg (castings, plastics, stamped sheet metal) |
| Output Formats | .stl, .ply, .obj, .igs, .wrl, .xyz, .dae, .fbx, .ma, .asc |
| Interface | USB 3.0 |
| Operating Temperature | -10°C to 40°C |
More from 3D Scanners

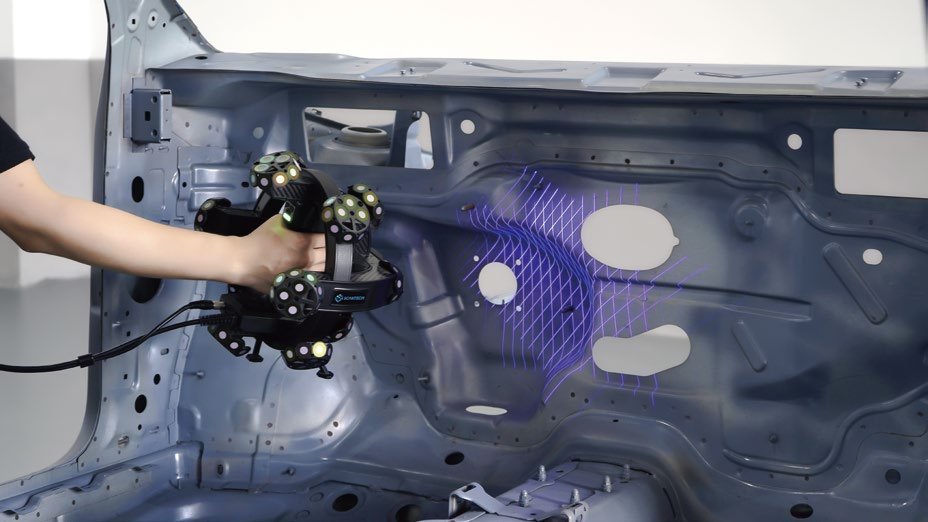

TrackScan-P 3D Scanning System
A marker-free tracking 3D scanning system (SCANTECH TrackScan-P) — an E-Track optical tracker plus scanner head, for large-part dynamic measurement without applying reference markers.

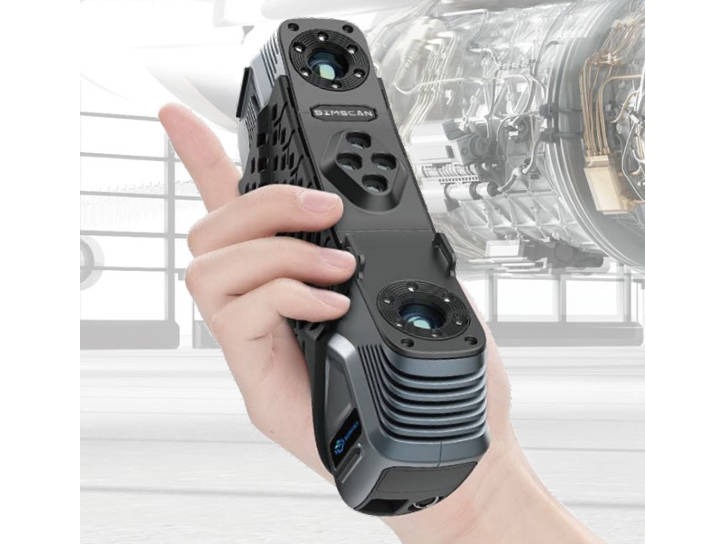

SIMSCAN 3D Scanner
A palm-sized, all-metal handheld 3D scanner (SCANTECH SIMSCAN) — 570g, Red Dot Design Award winner — in three speed/line-count tiers (22/30/42) for scanning in tight spaces.

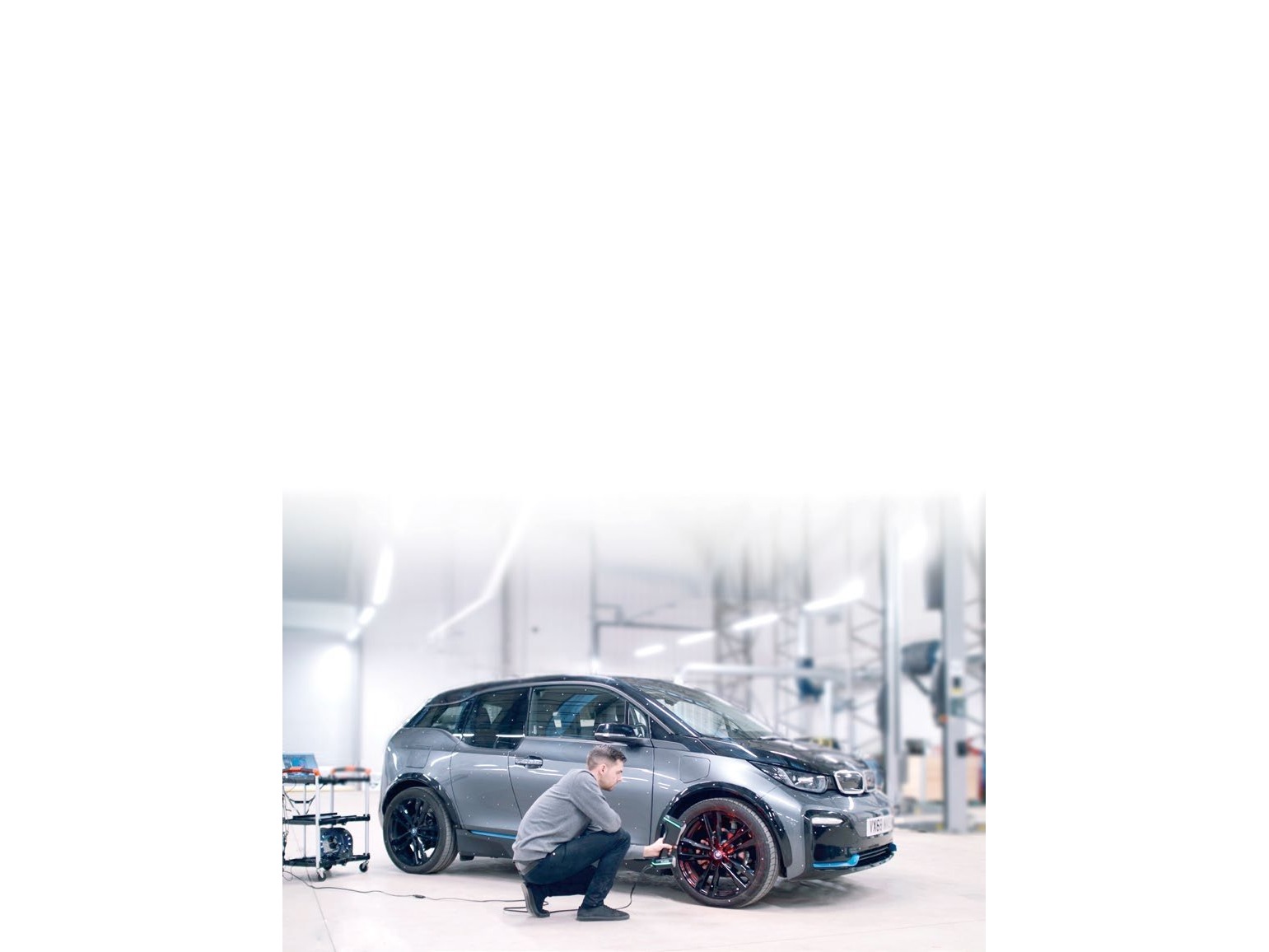

KSCAN 3D Scanner
